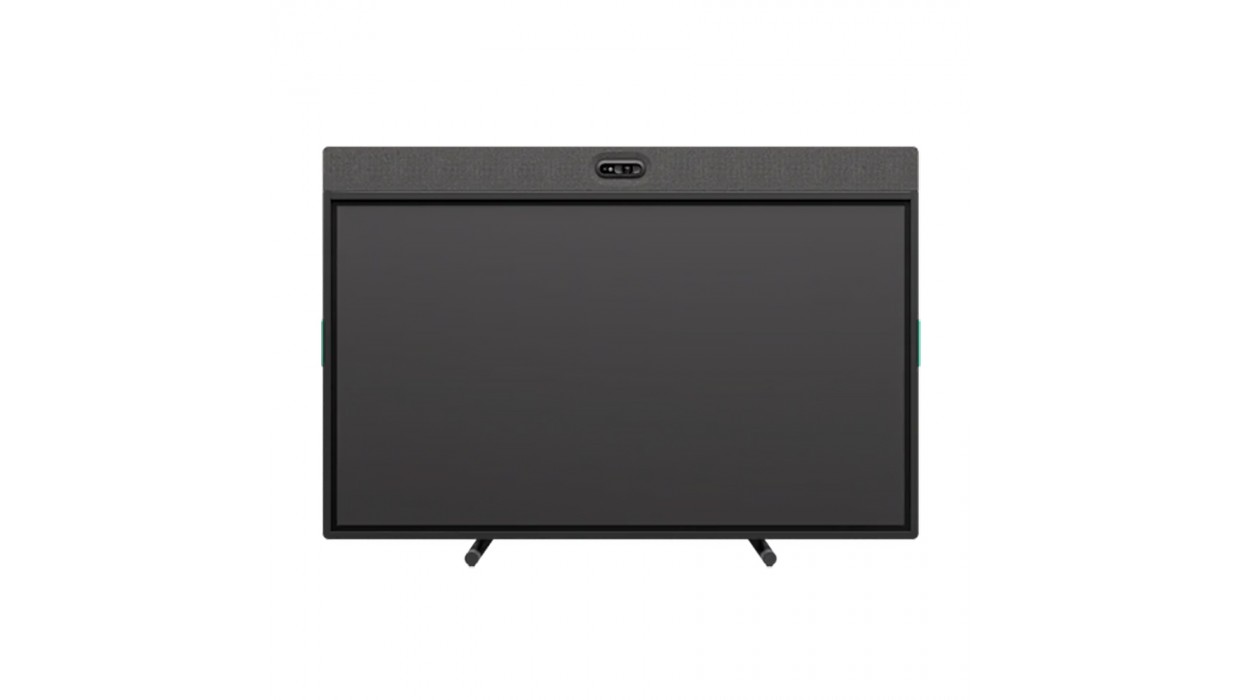

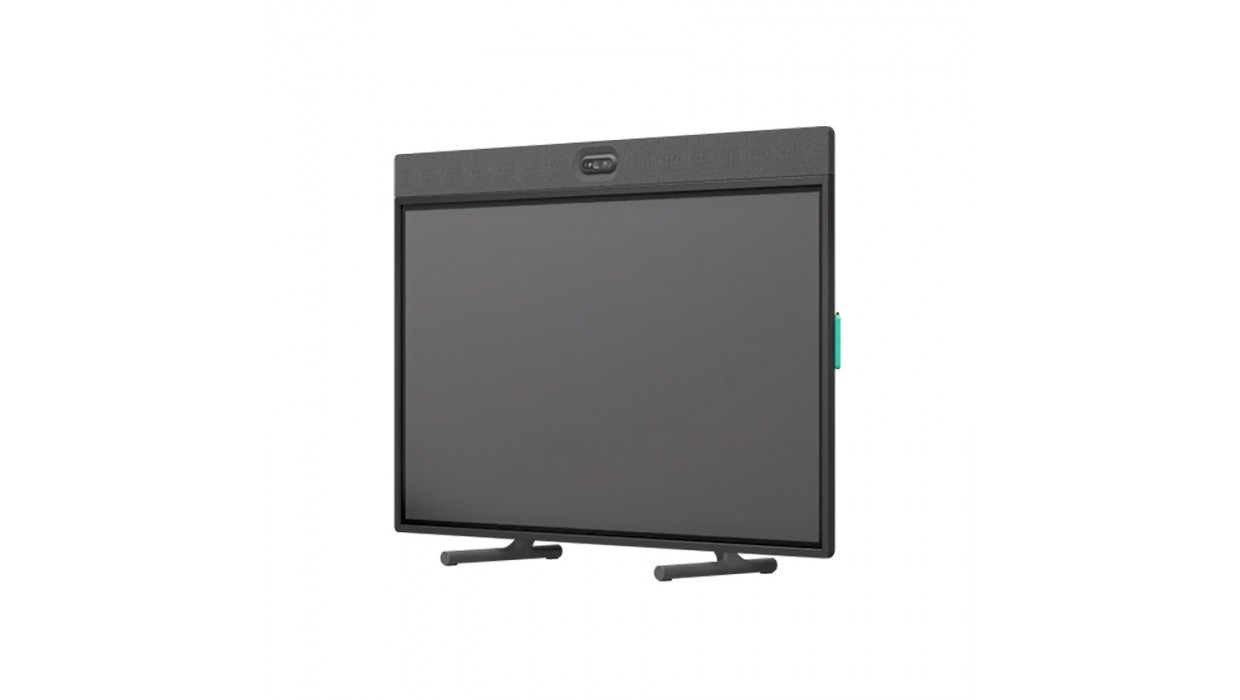

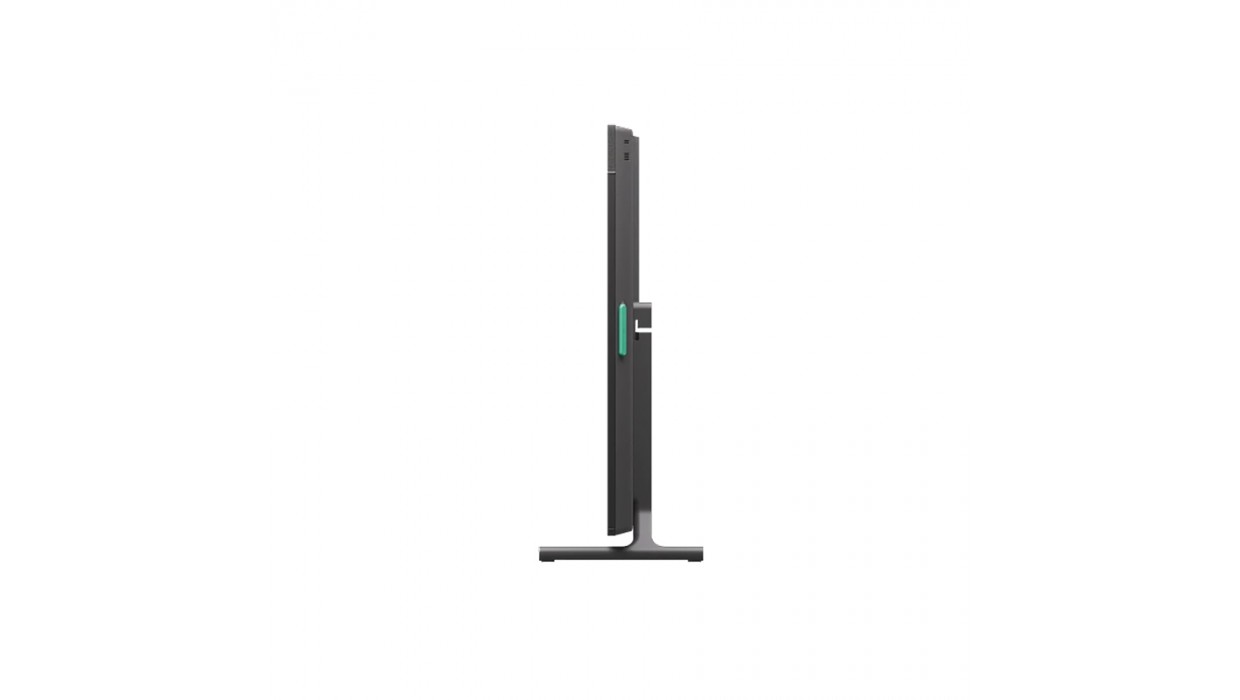

Rally Board 65

Simplify the way you meet and collaborate. A 65-inch touchscreen allows for seamless collaboration in any environment. Enjoy quick and easy setup, AI-powered features, and flexible installation options.

Dimensions

Rally Board 65 (unit only)

Width: 1500 mm

Height: 989 mm

Depth: 76 mm

Weight: 46 kg

VESA Standard MIS F: 400 x 400 mm and 400 x 200 mm

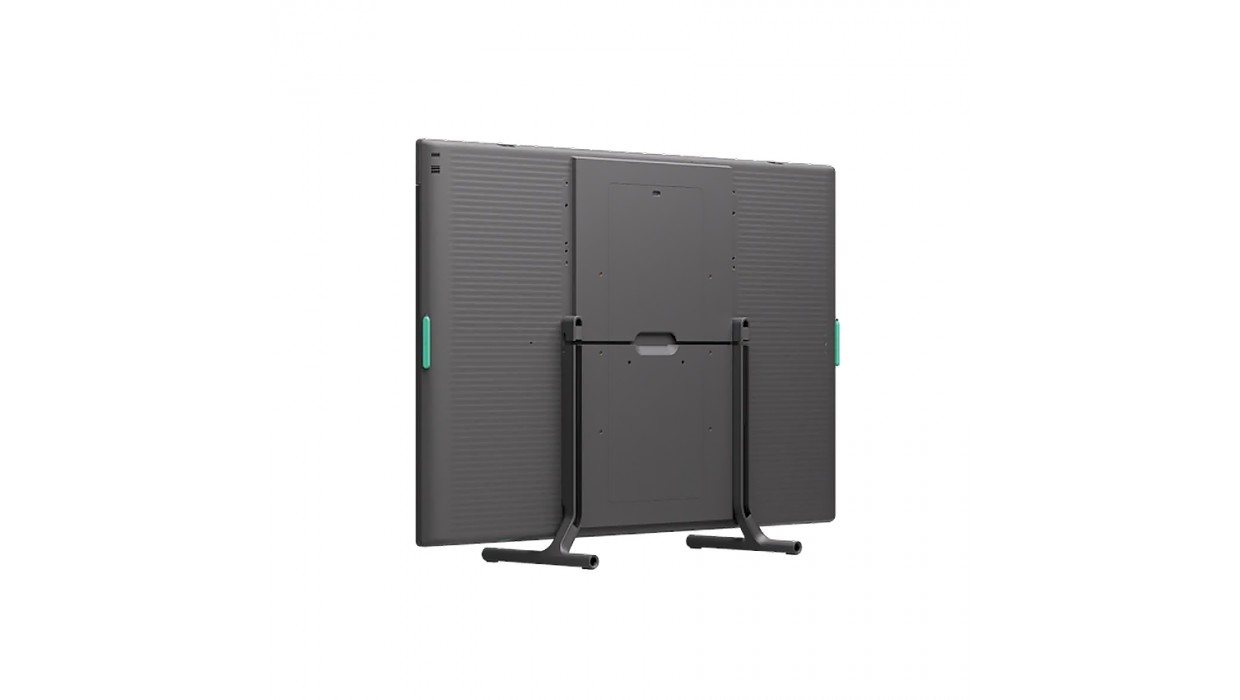

Rally Board 65 with accompanying desktop stand

Width: 1500 mm

Height: 1051 mm

Depth: 395 mm

Weight: 50 kg

Technical Specifications

General

Built-in components: Front microphone array, digital PTZ camera, dual full-range reflector speakers, dual tweeters, ultrasonic emitter, cable management and securing system, integrated motorized privacy screen, depth mapping camera, radar motion sensor, and ambient sensor

Supports a second display up to UHD 4K60 (3840 x 2160) Automatic motorized privacy mask

HDMI capture at up to 4K60 (3840 x 2160) resolution

Supported network protocols: IPv4, IPv6

Supported proxies: IP proxy, FQDN proxy, proxy using PAC files

System requirements

100 - 240V

Internet connection: Wired or wireless

Conference room solution software license (not included)

Display

65-inch LCD screen

IR-based touch, supports 20-point touch

UHD 4K (3840 x 2160) screen resolution

16:9 aspect ratio

Anti-glare coating

Anti-fingerprint coating

Contrast ratio: 5000:1 typical

Brightness: 400 lumens typical

Camera

Main camera

Image sensor: 1-inch, 20.3 megapixels

Resolution: 30fps 4K, 1440p, 1080p, 900p, 720p and SD

Automatic motorized tilt based on device orientation

Zoom: 4x HD digital zoom

Distortion-corrected field of view

Diagonal: 115.7°

Horizontal: 103.3°

Vertical: 60.7°

Depth mapping camera

Diagonal field of view: 145°

Horizontal field of view: 121°

Speakers

Dual full-range reflex speakers

Drivers: 2 x 70 mm

Sensitivity: 89 dB SPL at 1W/0.5 meters

Rated power: 8W

THD <2% at 1 W, 1 kHz

Dual tweeters

Drivers: 2 x 31 mm

Sensitivity: 93 dB SPL at 1W/0.5 meters

Rated power: 8W

THD <2% at 1 W, 4 kHz <2%

Microphone
Front microphone array

Frequency response: 90Hz-16kHz

Sensitivity: -36 dB FS +/-1 dB at 1 Pa

Microphone output data rate: 48kHz

Collision range: Up to 7 meters

RightSound 2

AI voice enhancement eliminates transient and stable noise

Beamforming with AI beamforming selection

AI voice detection

AI voice directionality

Echo cancellation and residual echo suppression

Sensors

Color temperature
Humidity

TVOC (Total Volatile Organic Compounds)

Carbon dioxide

PM2.5

PM10

Radar

Ambient indicator

For the latest information on certifications and compatibility, please visit www.logitech.com/support/vc-certifications

Interfaces

1 HDMI output: Up to 4K60

1 HDMI input: Up to 4K60

USB-A: 3 USB 3.1 ports

USB-C: 1 Type-C USB port 3.1 Connectivity Port, supports DP Alt mode

Line Output: 3.5 mm Line-Level Audio Output

Network: 10/100/1G Ethernet

Wi-Fi: 802.11a/b/g/n/ac/ax

Bluetooth: Bluetooth Low Energy

EXT: RJ45 (Reserved for future use)

Power and Cable

Power Supply: Built-in auto-sensor 100-240V

AC Cable: 3 meters

Environment

Operating Temperature: 0-35 °C

Storage Temperature: -40-60 °C

Humidity: 10-95%

Security

File-based Encryption: AES-256

Data Encryption: Symmetric Key, PKI

Device Identification: Protected by Device Authentication

Device Access: API Authentication

Key Protection: Arm TrustZone, RPMB

Accessories

Rally Board 65 Cart

Active USB Cable
