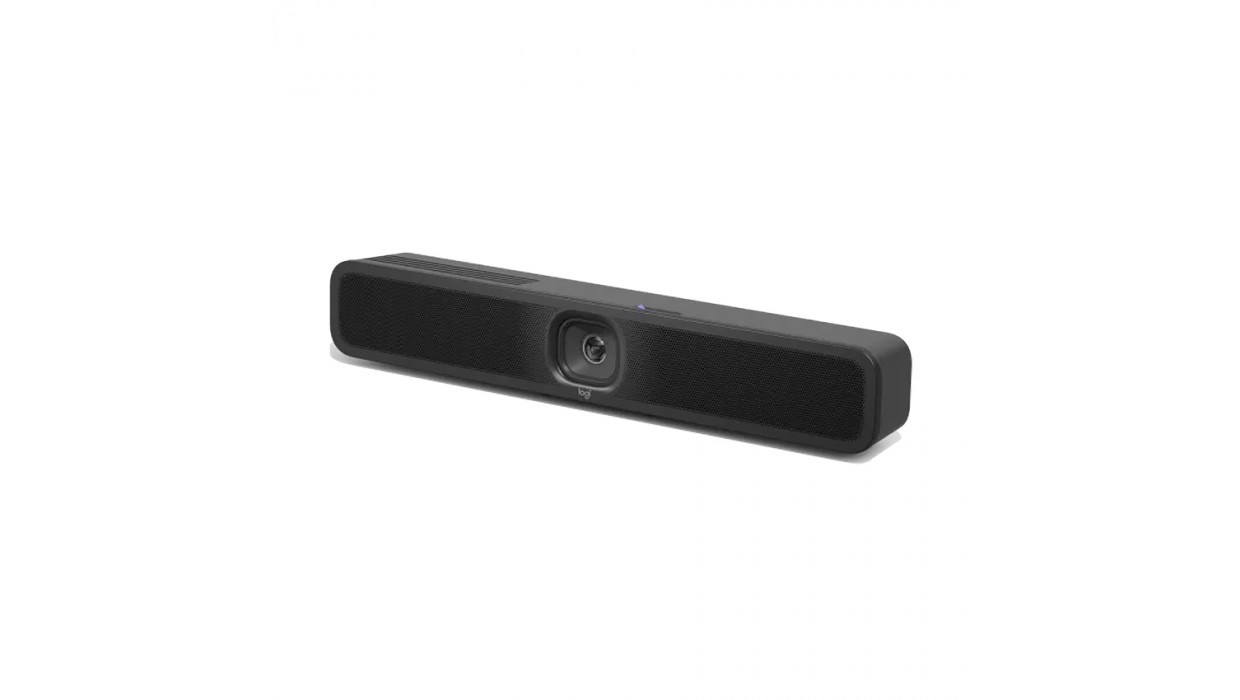

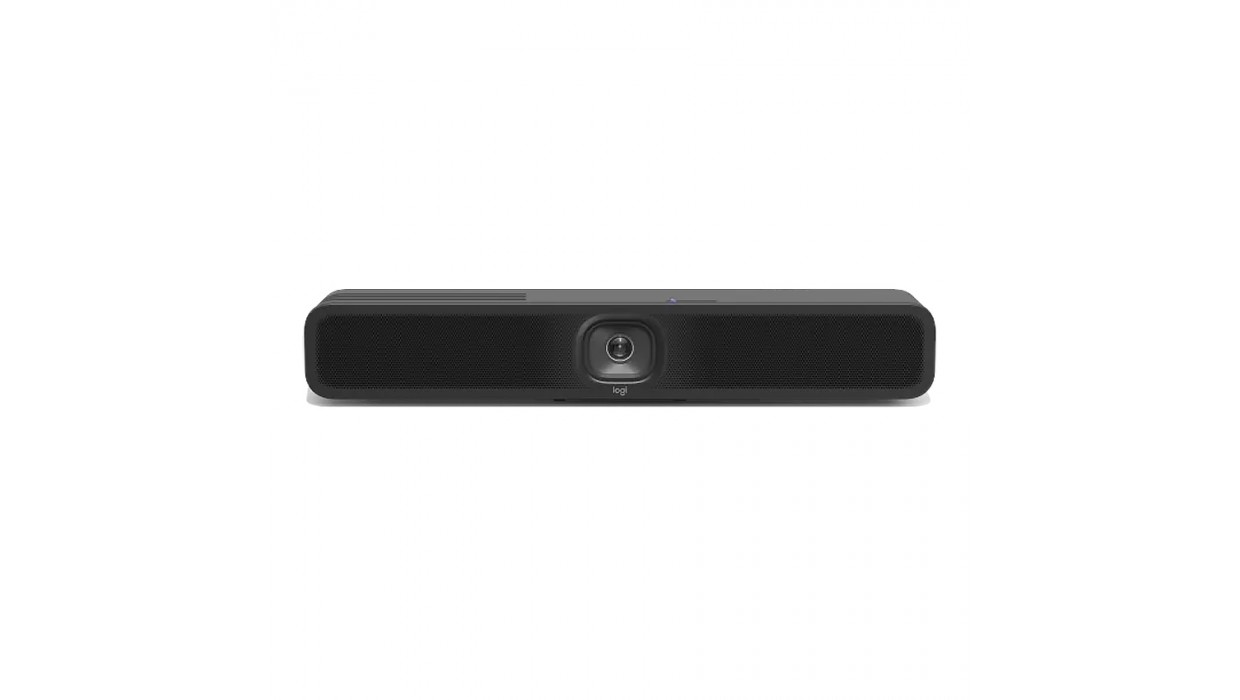

MeetUp 2

Bring AI-powered capabilities to your small USB meeting rooms with Meetup 2. Compatible with major video conferencing platforms such as Microsoft Teams, Zoom, and Google Meet, Meetup 2 can be used with a PC in USB mode or connected to a laptop in BYOD mode.

Meetup 2 is easily set up and managed with Logitech Sync—monitor meeting room status, deploy updates, and modify settings, all through a single cloud application.

Dimensions

Height: 73.3 mm

Width: 469.2 mm

Depth: 73 mm

Weight: 1.8 kg

Technical Specifications

Overview

Built-in Components

6-DMIC Microphone Array

Digital PTZ Camera

1 Full-Range Reflex Speaker

Cable Storage and Mounting System

Multi-mount Kit

Logitech CollabOS Platform

Logitech RightSight 2

Logitech RightSound 2

General Specifications

Casing: Full-Functional Case

Device Management: Logitech Sync

Supported Displays: BYOD Mode: 1; Dedicated PC Mode: Depends on PC/Application

Display Resolution: 1080p

Supported Network Protocols: IPv4, IPv6

Supported Proxy: IP Proxy, FQDN Proxy, PAC File Proxy

RoomMate Compatibility: MeetUp 2 is not compatible with Logitech RoomMate and can only be used on PC and BYOD. Deployment under this model.

Camera

Digital Pen: ±48° (4x Zoom)

Digital Tilt: ±32° (4x Zoom)

Zoom: 4x HD Digital Zoom

Diagonal Field of View: 120°

Horizontal Field of View: 113°

Vertical Field of View: 80°

Resolution: 4K

Speaker

Driver: 55mm, with bass-reflex housing and patented suspension design

Sensitivity: 83 dB SPL @1W +/-2dB @ 1 meter

Rated Power: 1W, 8W at 1kHz THD: <2%

Speaker Sampling Rate: 48kHz

Impedance: 4 ohms

Microphone

Frequency Response: 90Hz – 16kHz

Sensitivity: -36dBFS +/-1 dB @ 1Pa

Microphone Output Data Rate: 48 kHz

Range: Up to 7 meters

Beamforming Components: Six omnidirectional digital MEMS Microphones, forming five automatically adjusted acoustic wide-side beams

Audio Processing: AEC (Audio-Echo Cancellation), VAD (Voice Activity Detector)

Noise Suppression: AI noise reduction algorithm

Interfaces

HDMI Output: 1

HDMI Input: 1

USB: 1 Type-C USB 3.1 port

Video Networking: 10/100/1G Ethernet

WiFi: 802.11a/b/g/n/ac/ax

Bluetooth Connectivity: Bluetooth Low Energy

Power and Cables

Power Supply: Automatic sensing

Operating Voltage/Power: 100-240V, 19V, 2.1A

Power Supply Dimensions: 114 mm x 47 mm x 32.3 mm

DC Cable: 3 meters

USB-C to USB-C 3.0 Cable: 3 meters

Environment

Operating Temperature: 0 to Storage temperature: -25-70°C

Humidity: 10 to 90%

Security

File-based encryption: Available USB port

Data encryption: Symmetric key, PKI

Device identification: Protected by device authentication

Device access: Authentication using API

Key protection: Arm TrustZone, RPMP

Physical security: Kensington lock slot
