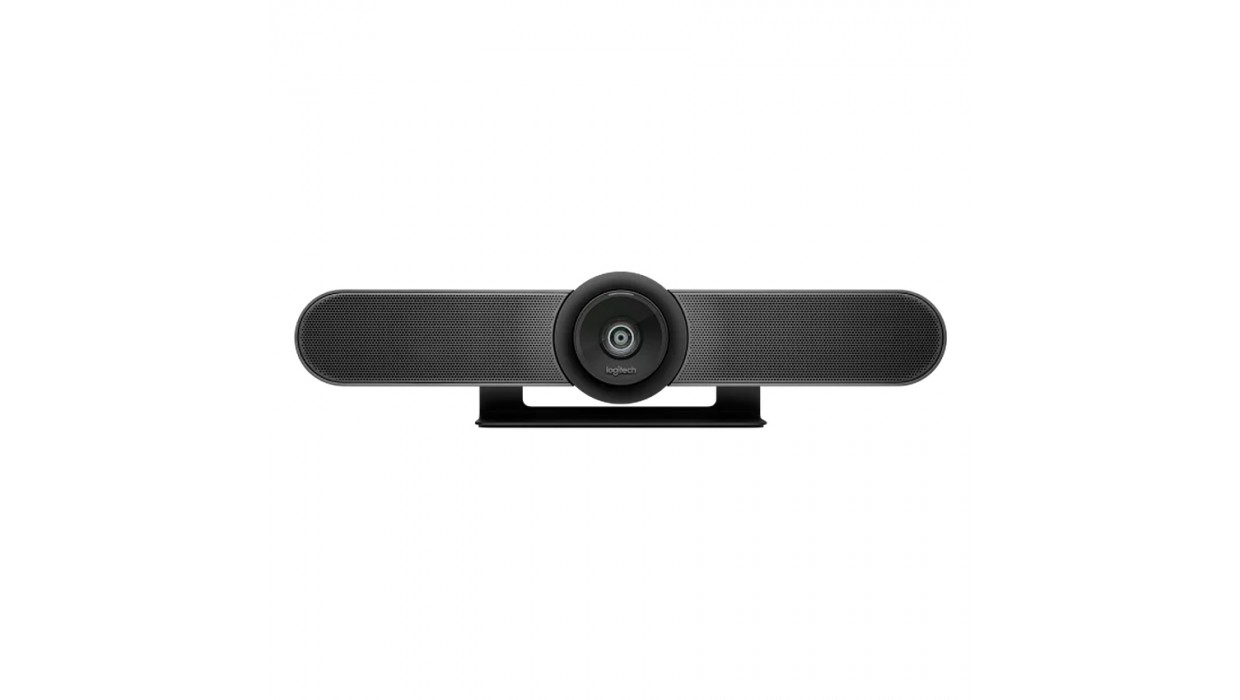

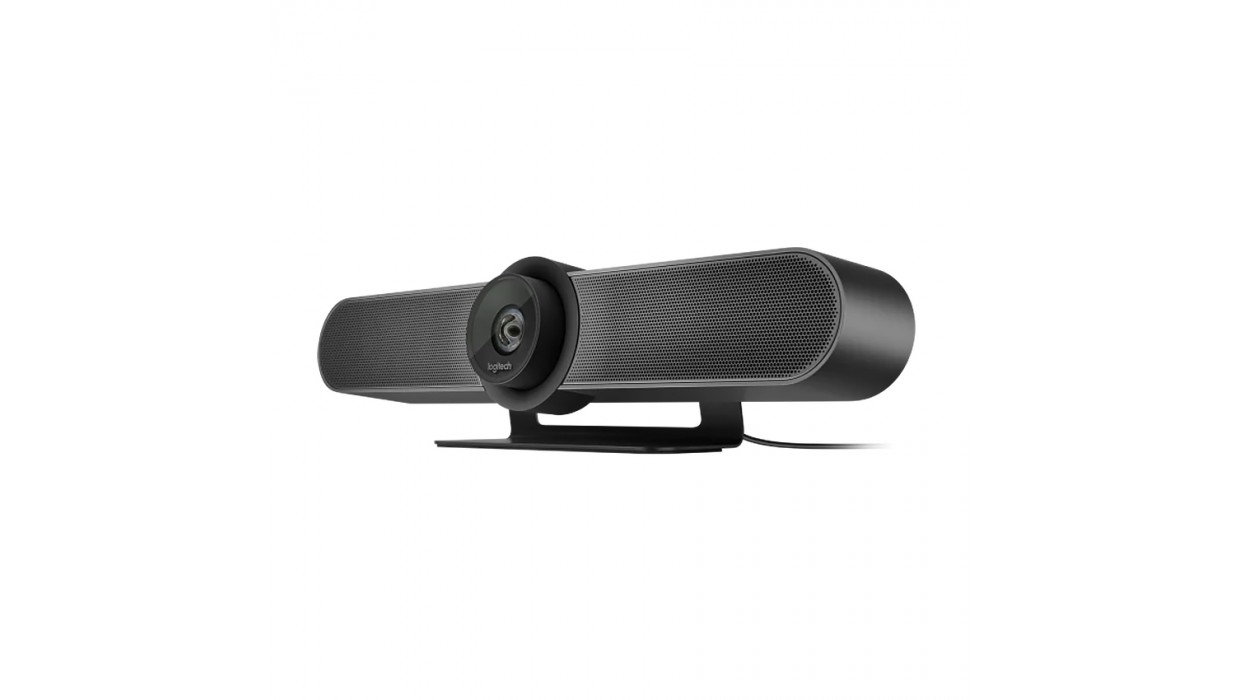

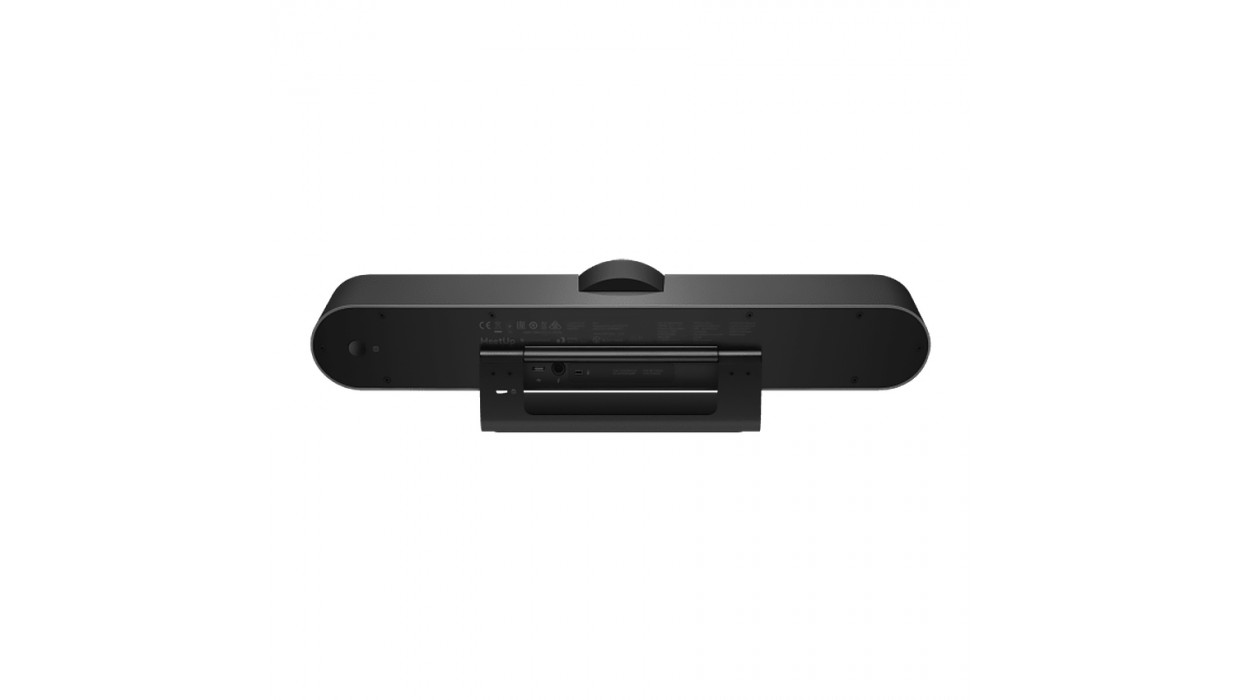

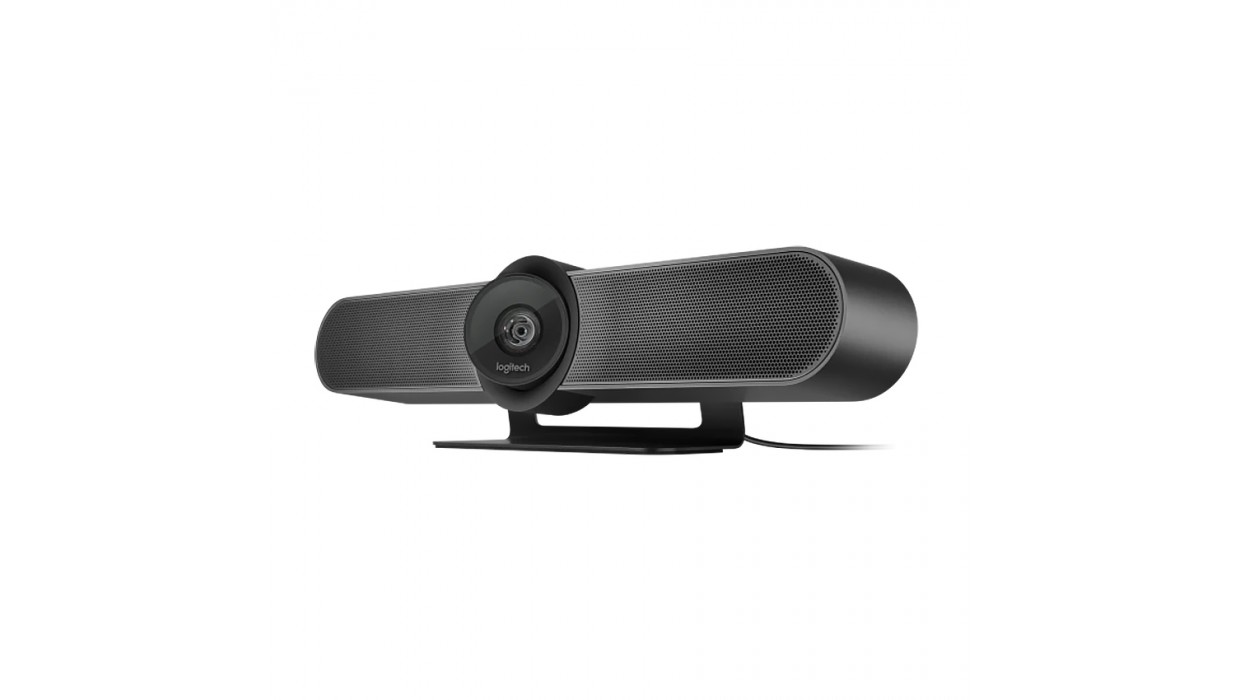

MeetUp

A full-featured conference camera suitable for small meeting spaces and rooms.

Dimensions

Main Unit

Height: 104 mm

Width: 400 mm

Depth: 85 mm

Weight: 1.04 kg

Remote Control

Height: 83 mm

Width: 83 mm

Depth: 10 mm

Technical Specifications

Camera

Custom Logitech lens with 5x HD zoom and motorized pan (+/- 25°) and tilt (+/- 15°) functions

Field of View: Diagonal: 120°, Horizontal: 113°, Vertical: 80.7°

Total Indoor Coverage (Field of View + Pan & Tilt): 163° wide x 110° high, 3 preset camera positions

RightSight Auto Viewfinder: Requires Windows 10 64-bit or macOS 10.14 or later

Video Performance

4K Ultra HD Video Calling (up to 3840 x 2160 pixels @ 30 fps, USB 3.0 cable not included)

1080p Full HD Video Calling (up to 1920 x 1080 pixels @ 30 fps)

720p HD Video Calling (up to 1280 x 720 pixels @ 30 fps)

Microphone

Integrated microphone with 3 beamforming elements

Collision Range

MeetUp: 4 meters

With optional extended microphone: 5 meters

Sensitivity: -27 dB

Microphone Frequency Response: 90Hz-16kHz Noise-free, high-definition full voice reproduction

Beamforming Performance: Factory-paired; ultra-low noise wide-edge beamforming algorithm ensures optimal pickup and noise reduction for microphones near the speaker

AEC (Audio Echo Cancellation)

VAD (Voice Activity Detector)

Microphone Background Noise Suppression

Microphone Data Rate: 32kHz Sampling Frequency

Suggested Attendees: 6

Suggested Attendees with Extended Microphone: 8

Speakers

Volume Adjustable to 95 dB SPL (Peak at 1/2 meter)

Speaker Sensitivity: 86.5 +/- 3dB SPL (1/2 meter)

Distortion: 200-300Hz < 3%, 3000 Hz -10kHz < 1%

Patent-pending room vibration enclosure enhances sound clarity while limiting sound transmission to adjacent spaces

General

Bluetooth Wireless Technology

RF Remote Control

Integrated Desktop/Wall Mount Kit; Optional TV Mount Kit

Kensington Locking Jack
