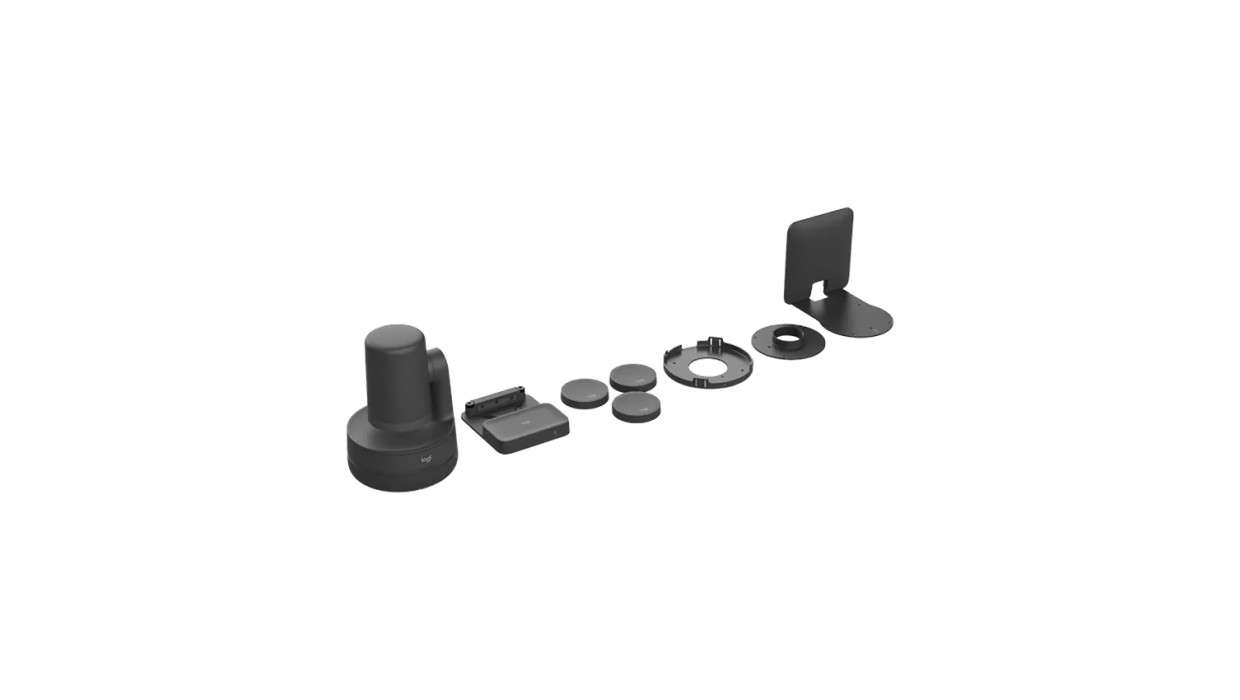

Rally Camera Streamline Kit

The Logitech Rally Streamline Kit is a USB PTZ video solution that enables engaging, hybrid, flexible teaching and presentations in large spaces through simple wireless pre-configuration buttons and a single cable.

Dimensions

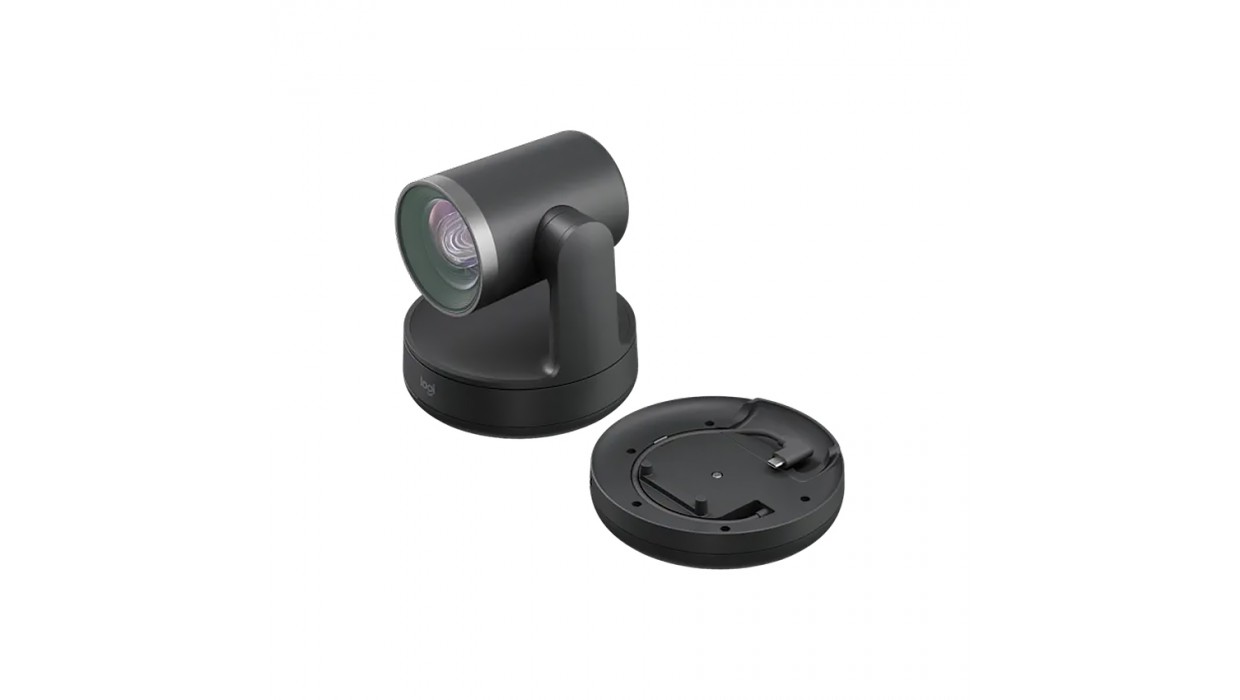

Rally Camera

Height: 182.5 mm

Width: 152 mm

Depth: 152 mm

Weight: 1.52 kg

Camera Side Mount for Rally Camera Extension Kit

Diameter: 153.3 mm

Height: 31.5 mm

Weight: 255.8 g

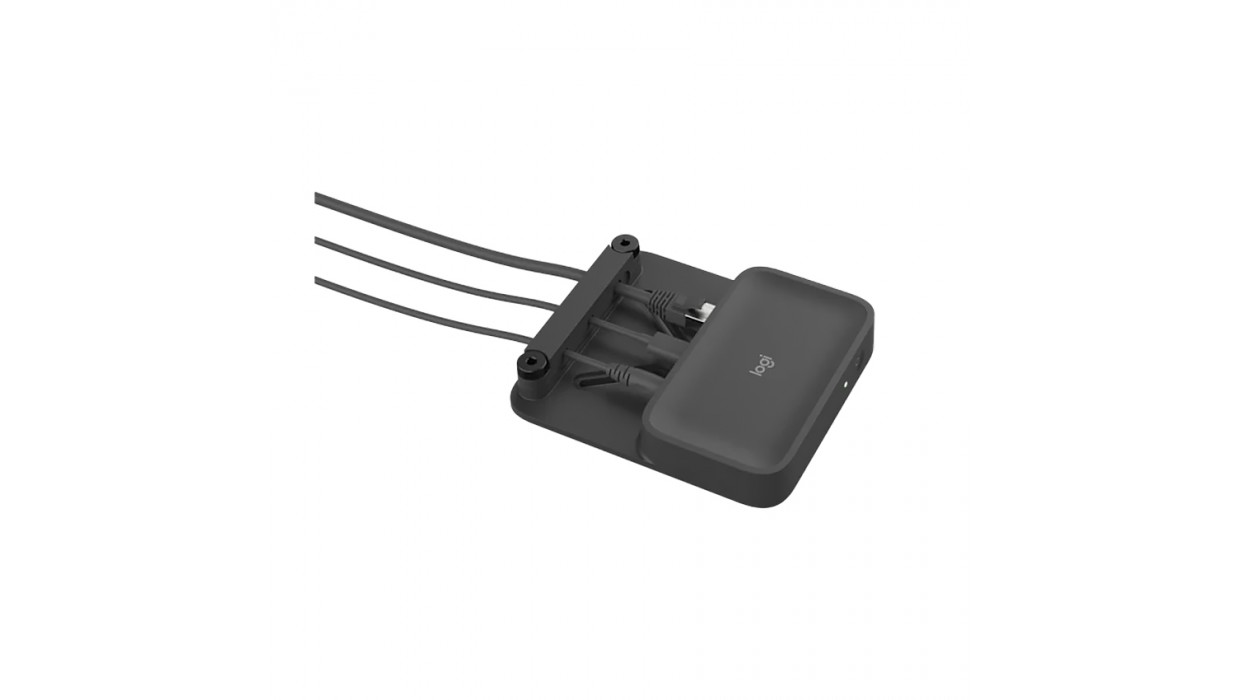

Control Side Box for Rally Camera Extension Kit

Height: 134.7 mm

Width: 117.2 mm

Depth: 22.8 mm

Weight: 137.5 g

Twist Lock Mount Plate for Rally Camera Extension Kit

Diameter: 137.6 mm

Height: 18.6 mm

Weight: 42.1 g

Wall Mount Kit for Rally Camera Extension Kit

Length: 165 mm

Width: 135 mm 1.5-inch NPT Adapter for Rally Camera Extension Kit

Diameter: 117.5 mm

Height: 15.2 mm

Weight: 650 g (with protective case)

1.5-inch NPT Adapter for Rally Camera Extension Kit

Diameter: 117.5 mm

Height: 15.2 mm

Weight: 200 g

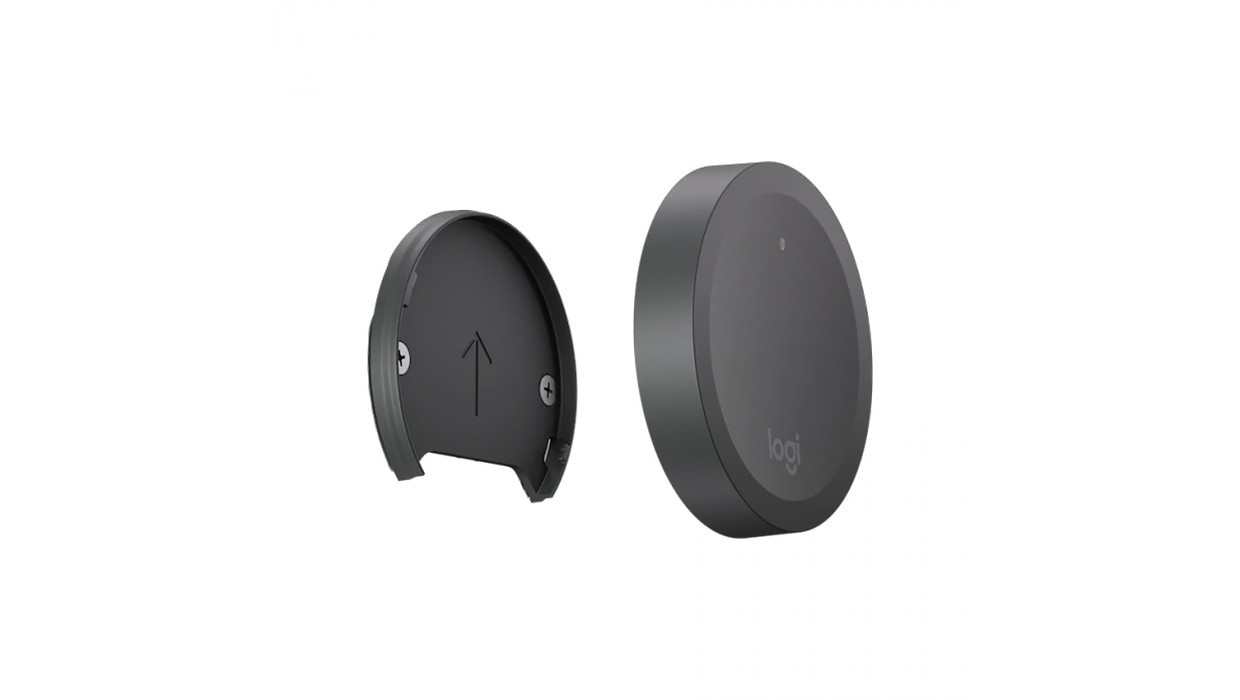

Rally Camera Preset Button

Diameter: 71.9 mm

Height: 15.2 mm

Wall Mount Kit Diameter: 67.2 mm

Wall Mount Kit Height: 5.80 mm

Weight: 43.2 g (with button mounting kit and 2 CR2032 batteries)

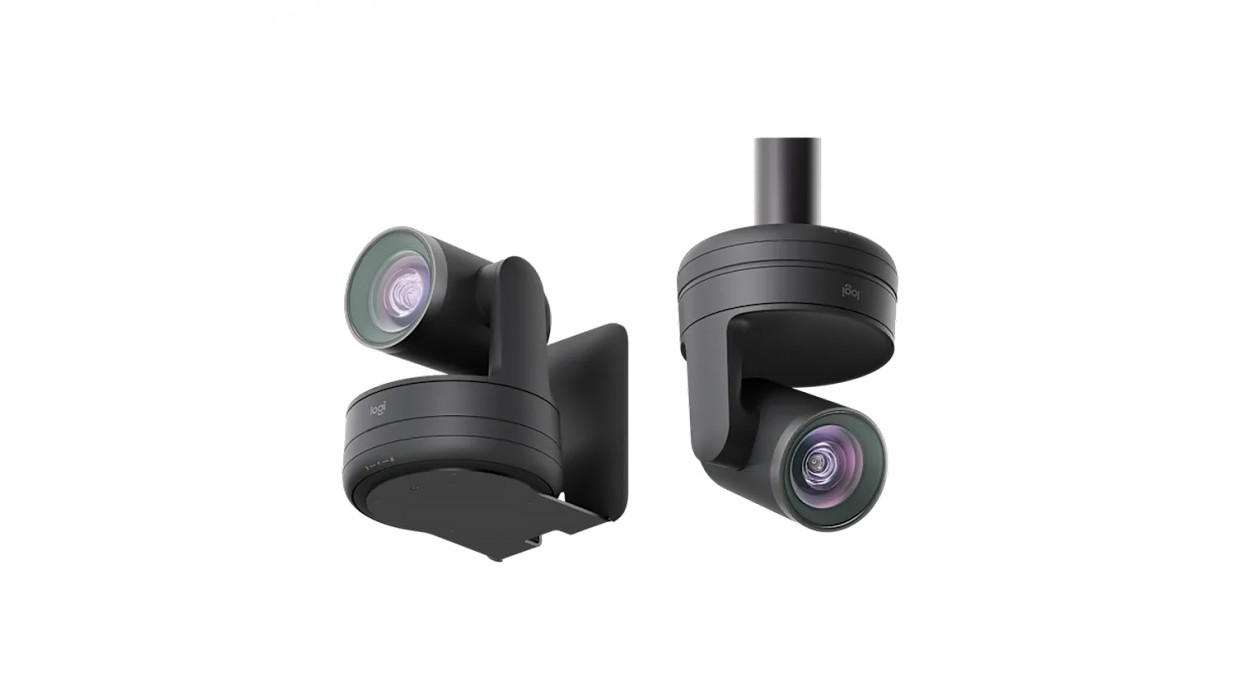

Assembled Rally Camera with Side Base and Wall Mount Kit

Length: 177 mm

Width: 148 mm

Height: 210 mm

Weight: 2.47 kg (With Protective Case)

Completely assembled Rally camera with camera side mount and 1.5-inch NPT adapter

Length: 148 mm

Width: 148 mm

Height: 220 mm

Weight: 2.02 kg

Technical Specifications

Ports and Interfaces

Control Side Box: Front

Restart Button

LED Status Indicators

Control Side Box: Back

USB-C (from control side box to user device)

RJ45 to Camera Side Mount

DC Power Cable

Built-in Cable Management System

Mounting Slots

Camera Side Mount

Integrated USB-C Cable (from camera side mount to Rally camera)

RJ45 to Control Side Box

Preset Button

Bluetooth Low Energy Technology

Lock/Unlock Preset and Bluetooth Pairing Function Switching Mechanism

Mounting

Control Side Box

Mounting Slots: 2 1 through-hole for direct wall, desktop, or shelf mounting

Camera side mount

VESA: 75 x 75 mm

Tripod: ⅝-27 and ¼-20

Twist lock: Direct mounting to twist lock mounting plate

Preset button mounting plate

Mounting holes: 2 through-holes for direct wall or desktop mounting (mounting hardware included)

Tape positions: 2 designated areas for 46 x 16 x 16 mm tape (tape not included)

Wall mount kit for Rally camera extension kit

Direct mounting to 2-sided toolbox or standard wall surface, such as drywall (mounting hardware included)

1.5 inch NPT adapter for Rally camera extension kit

VESA: 75 x 75 mm (mounting hardware included)

Power and cable

Rally camera extension kit

Power supply operating voltage/power: 100-240V, 48V, 1.0A

Power Supply Dimensions: 68.9 x 33.9 x 71.3 mm

DC Cable: 1.5 m

USB-C to USB-C 2.1 Cable: 2 m

USB-C to USB-A 2.1 Adapter: 37 mm

Preset Button

2 CR2032 Batteries

Camera

HD Imaging System Support

1080p, 900p, 720p and SD at 30fps

1080p and 720p Resolution at 30fps and 60fps

Smooth Motorized Pan, Tilt and Zoom

Pan: ±90°

Tilt: +50° / -90°

15x HD Lossless Zoom

Field of View

Diagonal: 90°

Horizontal: 82.1°

Vertical: 52.2°

Remote Control

RF Remote Control (Does not need to be within line of sight)

CR2032 Battery (Included)

Autofocus

Kensington Locking Anchor
