- Stock: In Stock
- Model: Rally Bar Mini

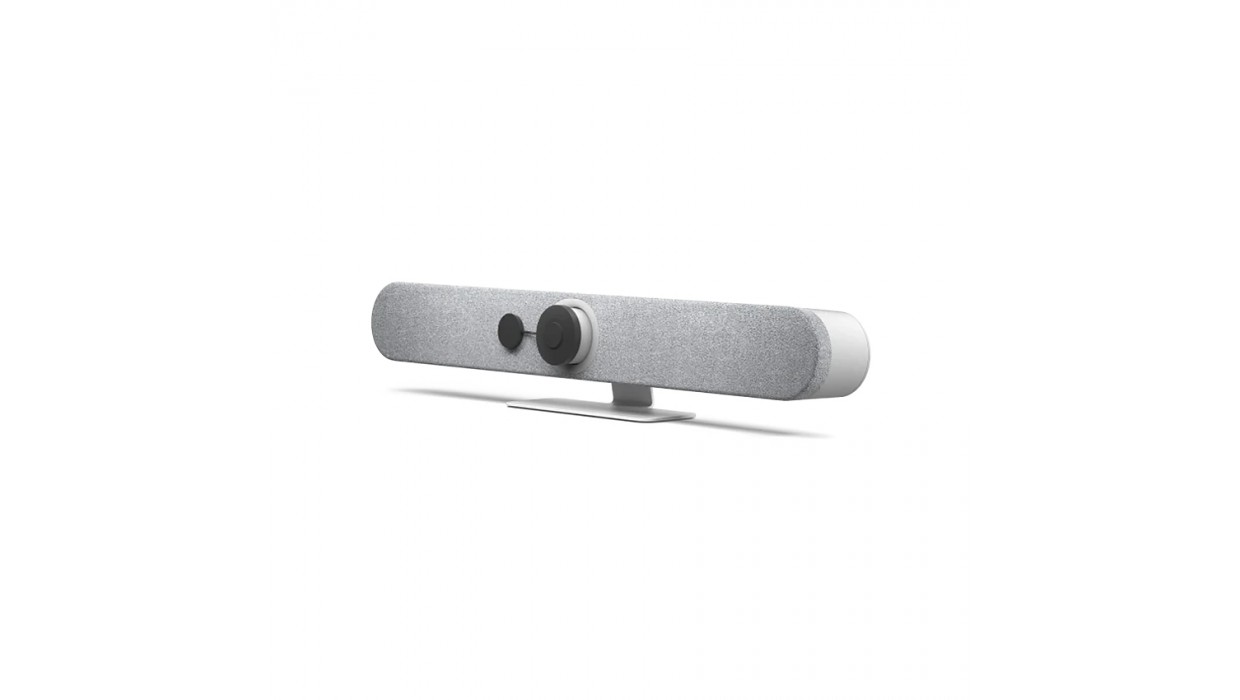

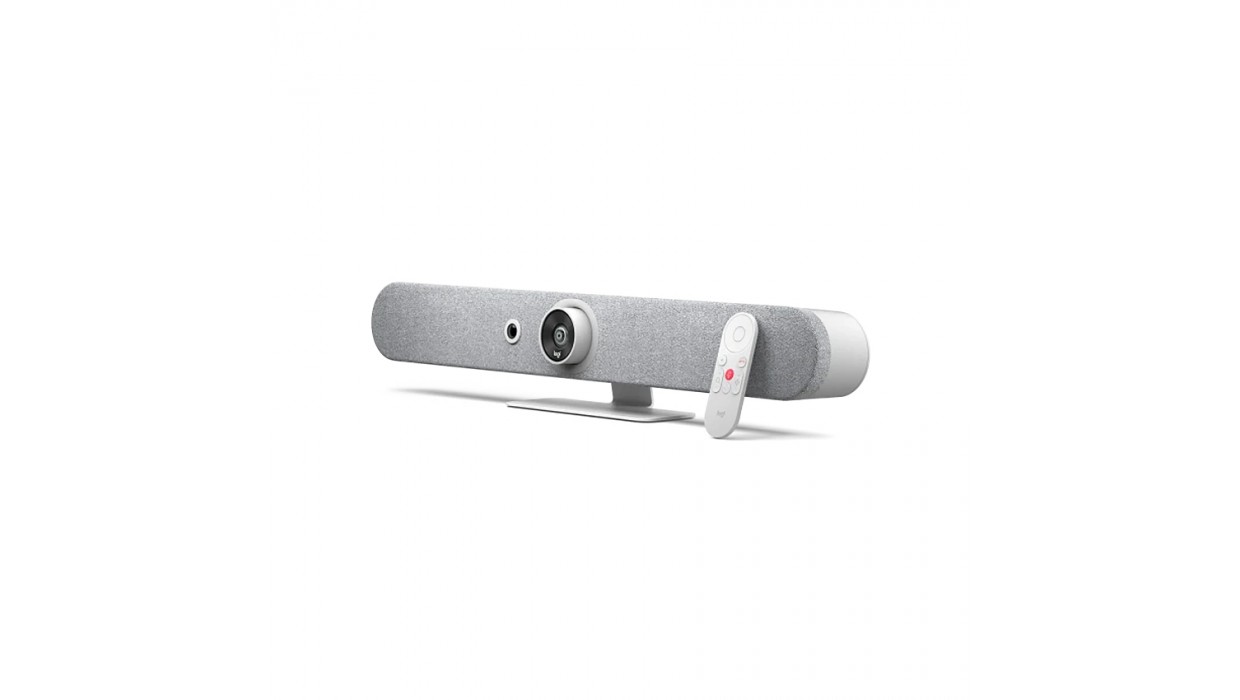

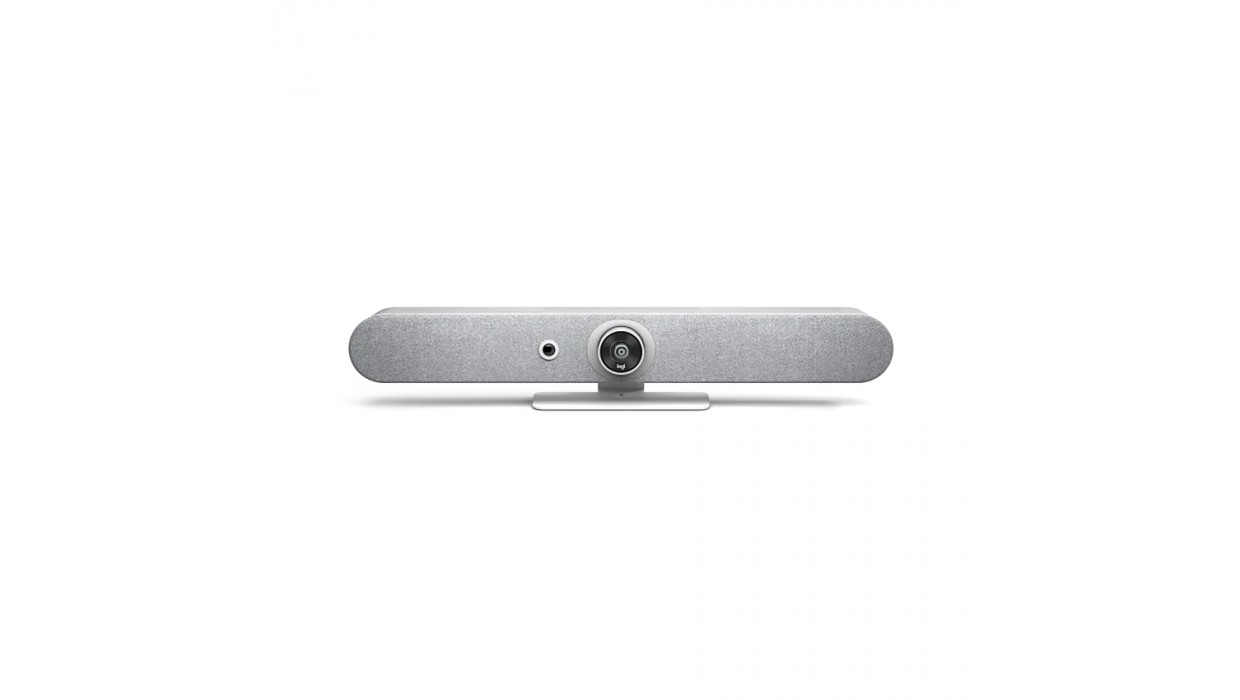

The Logitech Rally Bar Mini is a full-featured video conferencing system suitable for small to medium-sized meeting rooms. Explore incredibly simple, fully-featured video conferencing with built-in AI technology, brilliant optics, and powerful audio.
Dimensions
Height: 91.4 mm
Width: 719 mm
Depth: 101 mm
Lens Depth: 18.5 mm
Weight: 4.03 kg
General Specifications
Built-in Components: 6 beamforming microphones, PTZ camera, 3 speakers, AI viewfinder, cable management and mounting system, desktop stand, Logitech CollabOS platform
Enclosure: Full-featured enclosure with integrated desktop stand and patent-pending speaker suspension system to eliminate camera shake and audio interference caused by vibration
Device Management: Logitech Sync
Supported Displays: 2
Display Resolution: Up to 1080p
Supported Network Protocols: IPv4, IPv6
Supported Proxy: IP Proxy, FQDN Proxy, PAC File Proxy
Camera
Resolution: 4K, 1440p, 1080p, 900p, 720p y SD a 30fps
Pan: Motor ±25°
Tilt: Motor ±15°
Zoom: 4x HD Digital Zoom
Diagonal Field of View: 120°
Horizontal Field of View: 113°
Vertical Field of View: 80.7°
Total Room Coverage (Field of View + Pan & Tilt): 163° Horizontal x 110° Vertical
Subwoofer
Driver: 70 mm
Sensitivity: 92dB SPL @1W, 99dB SPL @8.0W at ½ meter, both +/-2dB
Rated Power: 8W
THD: 1kHz < 2% @ 1W
Sampling Rate: 48kHz
Impedance: 4 ohms
Midrange Speaker
Driver: 2 x 43 mm
Sensitivity: 84 dB SPL @ 1W/1M
Rated Power: 4W
THD: 1kHz < 2% @ 1W
Speaker Sampling Rate: 48kHz
Impedance: 4 ohms
Microphone
Frequency Response: 90Hz – 16kHz
Sensitivity: >-36dBFS +/-1 dB @ 1Pa
Microphone Output Data Rate: 48 kHz
Collision Range: Up to 7 meters
Beamforming Assembly: 6 omnidirectional digital MEMS microphones forming 5 automatically adjusted acoustic wide-edge beams
Audio Processing: AEC (Audio Echo Cancellation), VAD (Voice Activity Detector)
Noise Suppression: AI noise reduction algorithm
Additional Microphones: Supports up to 3 additional rally microphones and 2 rally microphone hubs in large conference rooms
RightSense™ Technology
RightLight: Provides natural skin tones for every participant in the camera view
RightSight: The main camera frames the current speaker, while the AI viewfinder captures images of everyone in the conference room
RightSound: Distinguish speech from other sounds and automatically adjust volume while suppressing background noise and echo. Grid view: Detect and frame all meeting participants to create a fair and immersive meeting experience. For more information, please see logitech.com/prosupport/gridview
Interface
HDMI Outputs: 2 (up to 1080p)
HDMI Inputs: 1
USB: 3 Type A, 1 Type C
Ethernet: 10/100/1G Ethernet
WiFi: 802.11a/b/g/n/ac
External Microphone Input: Yes (Dedicated input port, supports selected rally microphones, rally microphone hubs, and rally microphone extension cables)
Remote Control: Bluetooth Low Energy
Power and Cables
Power Supply: Auto-sensing
Operating Voltage/Power: 100-240V, 19V, 4.74A
Power Supply Dimensions: 127mm x 51mm x 30mm
DC Cable: 1.5m
AC Cable: 1m
HDMI 1.4 Cables: 2 2.2 meters
USB A to USB C 3.0 Cable: 2.2 meters
Environment
Operating Temperature: 0 to 40°C
Storage Temperature: -40 to 70°C
Humidity: 10 to 95%
BTU/hr: 57 idle, 64 in meeting
Security
Full Disk Encryption: Available USB ports
Data Encryption: Symmetric Key, PKI
Device Identification: Protected by Device Authentication
Device Access: Authentication using API
Key Protection: Arm TrustZone, RPMP
Accessories
Mounting: Wall mount kit for Video Bars, TV mount kit for Video Bars
Audio: Rally microphone, Rally microphone hub, Rally microphone mounting kit, Rally microphone extension cable
Connectivity: Logitech reinforced USB cables (10 meters, 25 meters, 45 meters)
Touch Controllers: Logitech Tap and Tap IP
